EMT Flexible Conduit

LIQUID TIGHT FLEXIBLE STEEL CONDUIT

Material Galvanized steel core, corrosion resistant with or without filler of cord.

Features Ideal for static and dynamic applications requiring high mechanical protection and high flexibility.

SIZE	ITEM#	COIL PACKING (m)	INSIDE DIAMETER (MM) Max.	INSIDE DIAMETER (MM) Min.	OUTSIDE DIAMETER (MM) Max.	OUTSIDE DIAMETER (MM) Min.
3/8"	DLT-6100	30, 50, 100	12.8	12.3	18	17.5

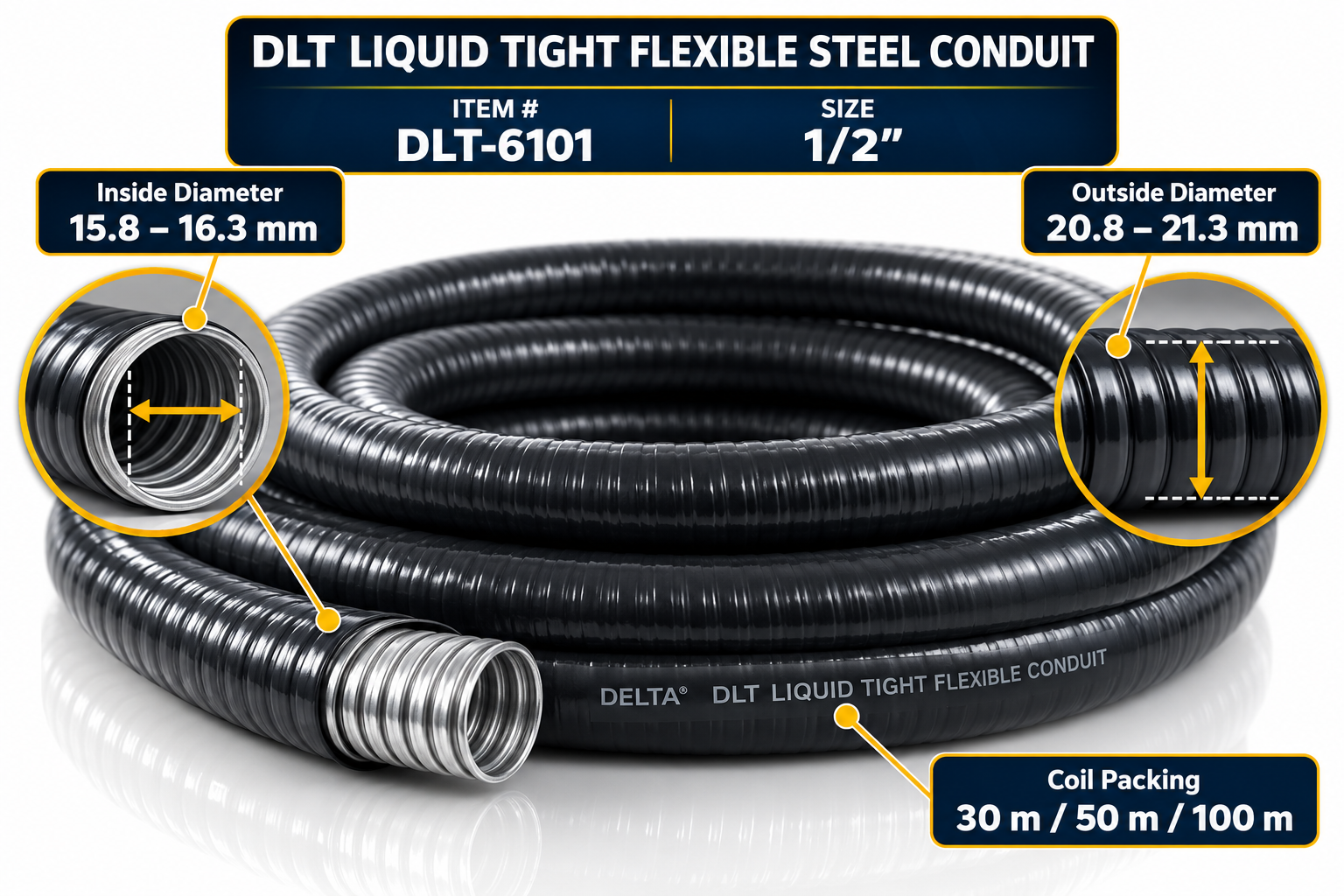

1/2"	DLT-6101	30, 50, 100	16.3	15.8	21.3	20.8
3/4"	DLT-6102	30, 50, 100	21.2	20.7	26.7	26.2

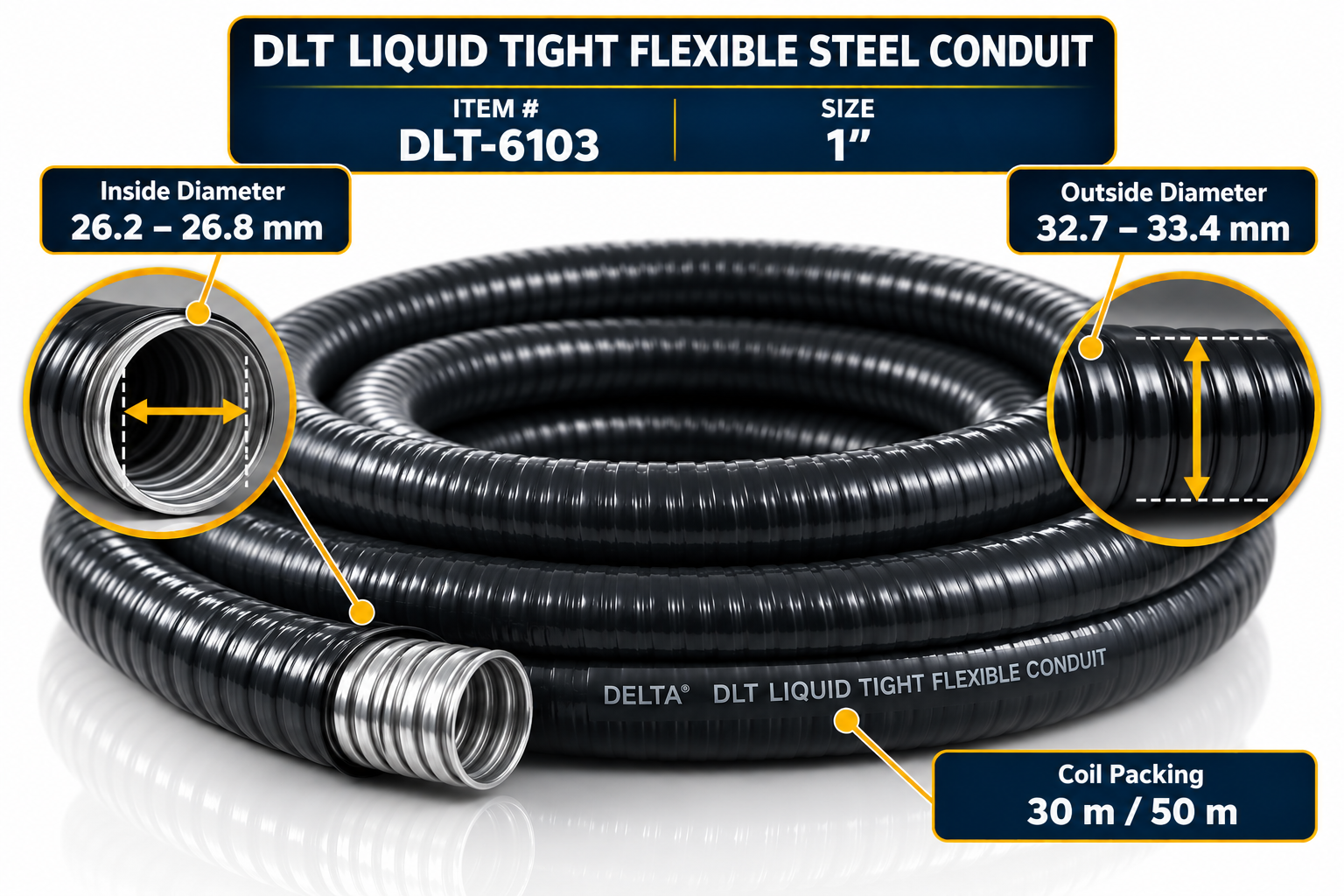

1"	DLT-6103	30, 50	26.8	26.2	33.4	32.7
1-1/4"	DLT-6104	15, 30	35.4	34.8	42.2	41.4

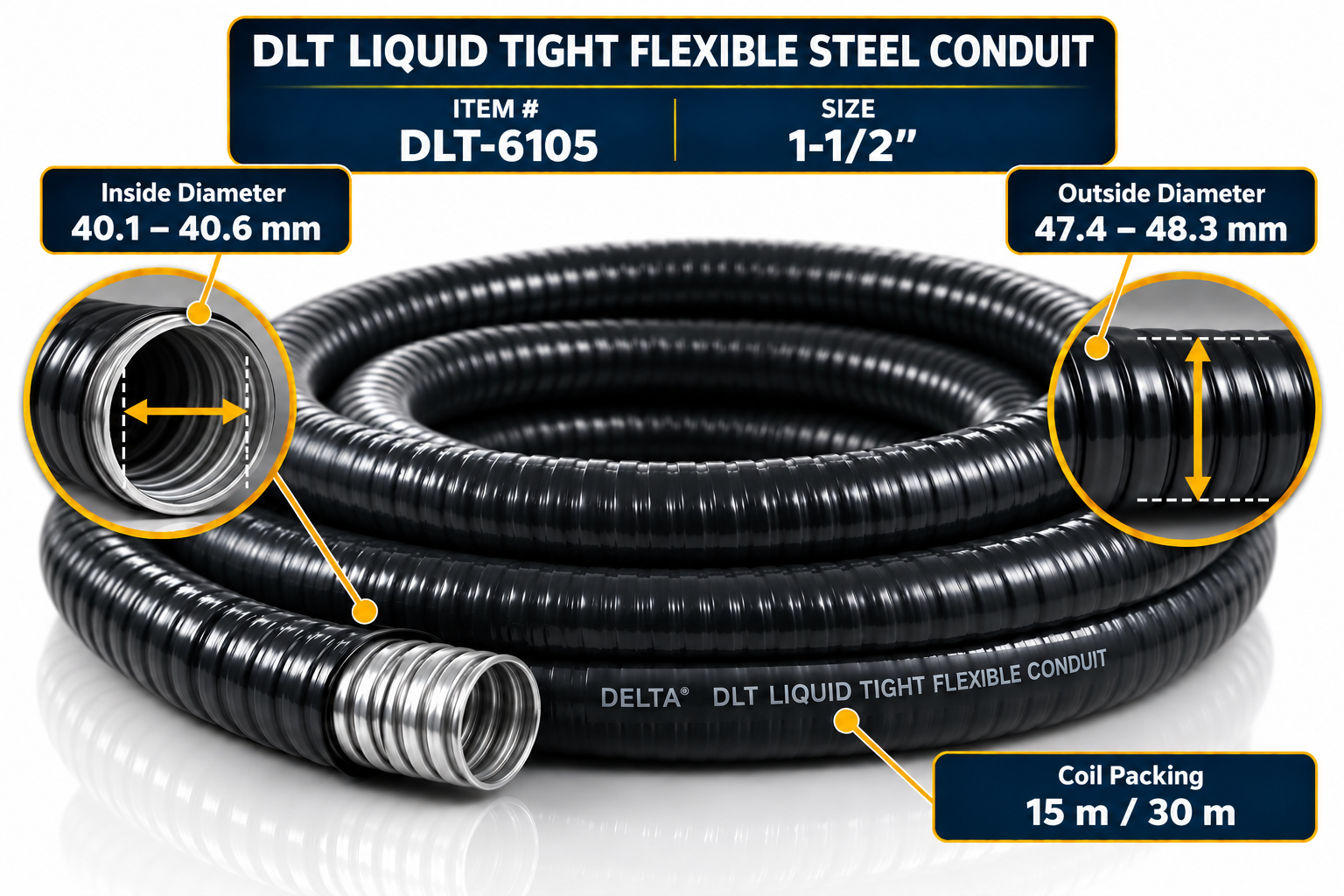

1-1/2"	DLT-6105	15, 30	40.6	40.1	48.3	47.4
2"	DLT-6106	15, 30	51.9	51.3	60.3	59.4
