EMT CONDUIT

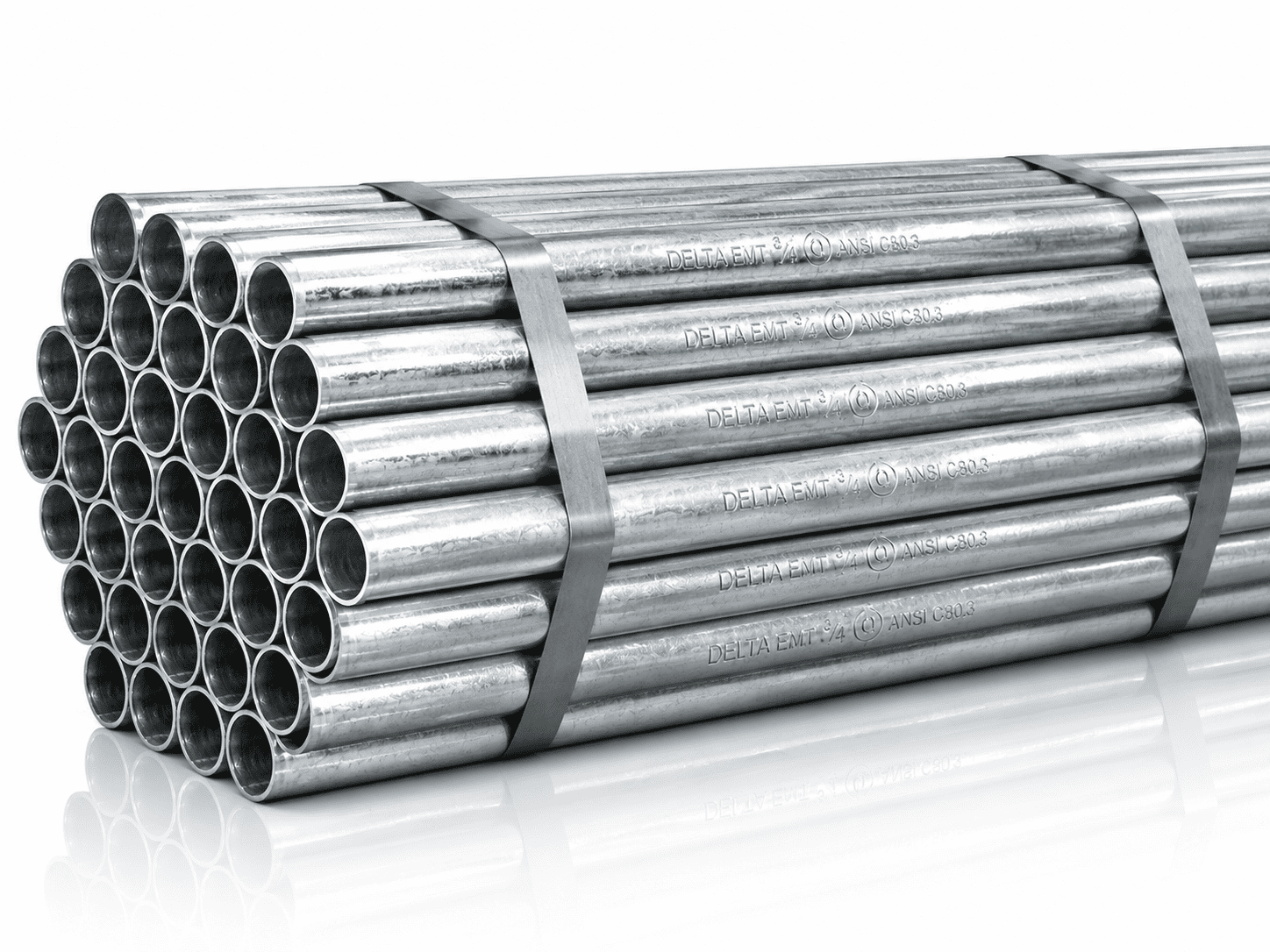

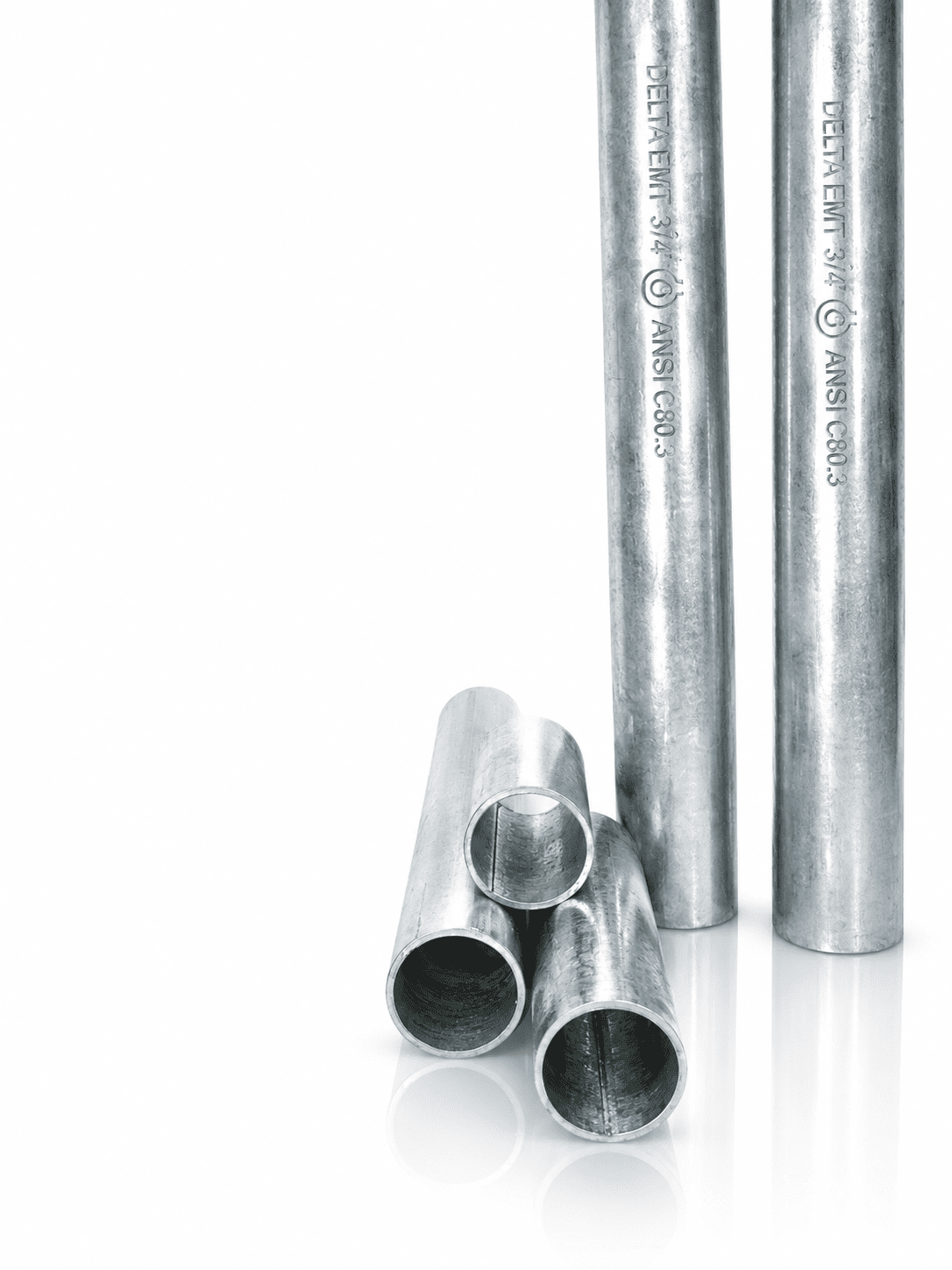

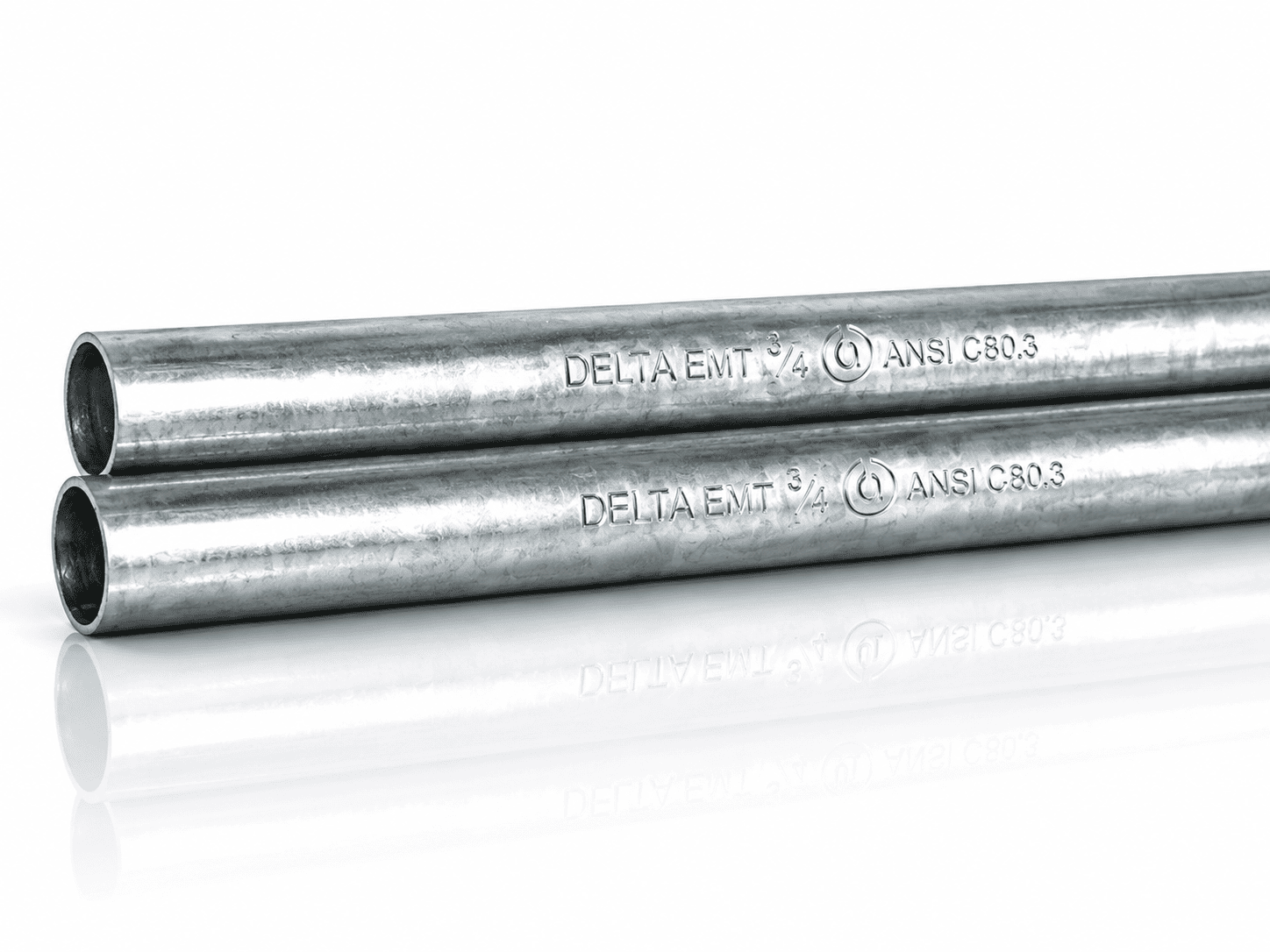

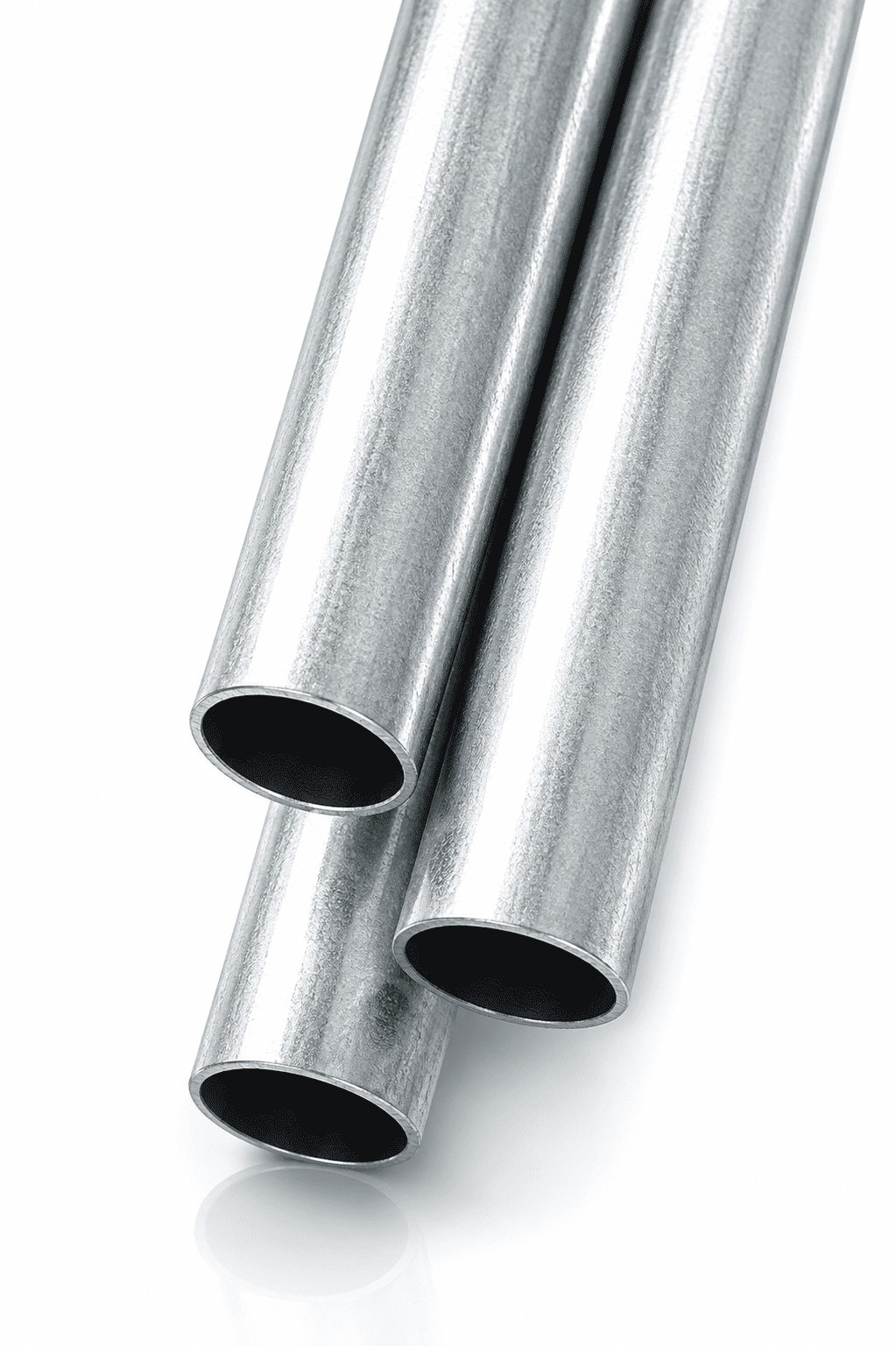

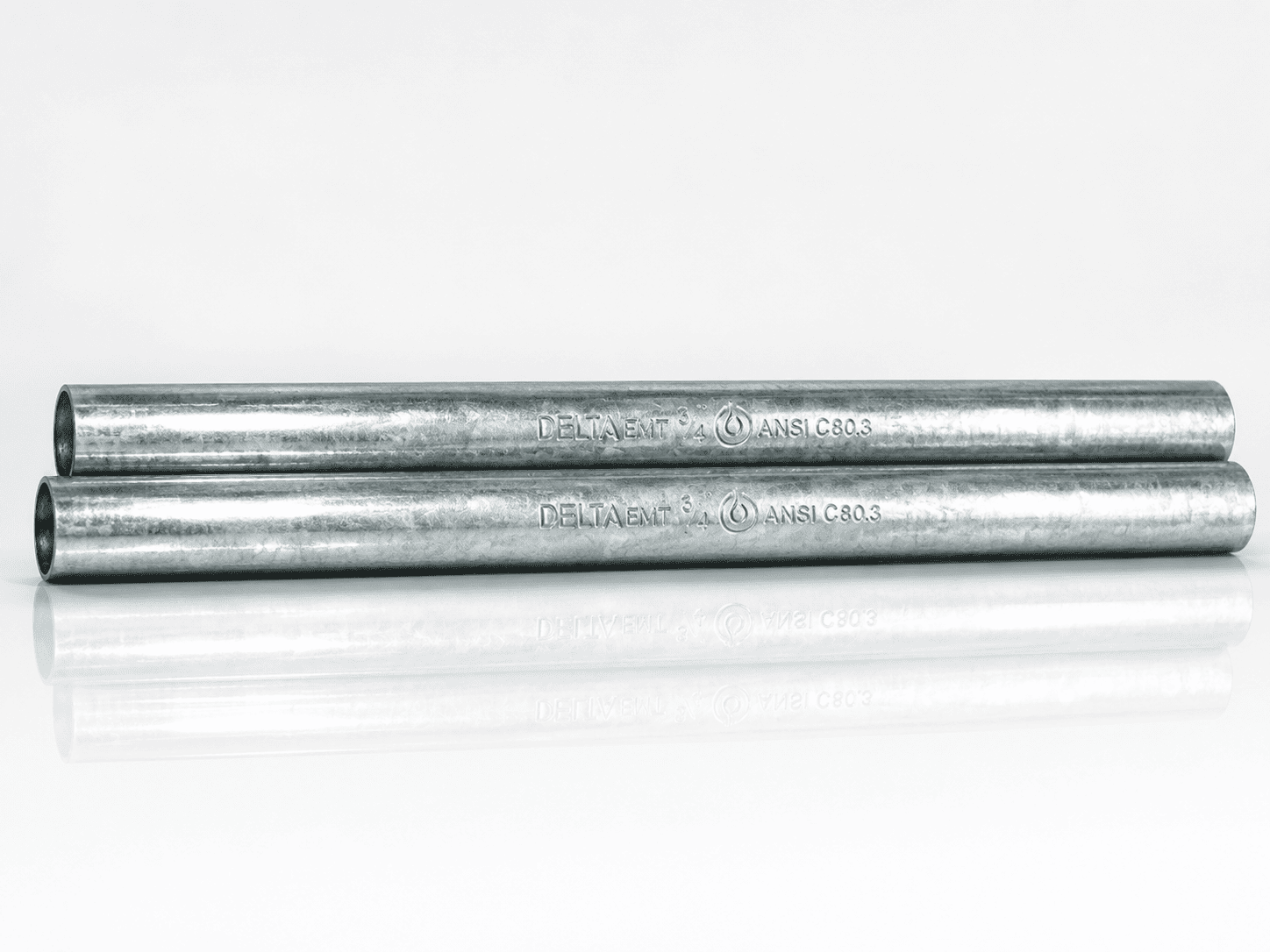

EMT is a steel raceway of circular cross section which is unthreaded.

The exterior is galvanized and protected by a clear zinc coating.

The interior is a smooth continuous raceway and is coated with zinc organic lubricants.

It is installed either indoors or outdoors in all conditions and produced trade size from 1/2" to 2".

Pre-Galvanized

Hot-Dip Galvanized

Epoxy Coated

ITEM#	TRADE SIZE (in.)	NOMINAL WALL THICKNESS (in.)	NOMINAL WALL THICKNESS (mm.)	NOMINAL OUTSIDE DIAMETER (in.)	NOMINAL OUTSIDE DIAMETER (mm.)

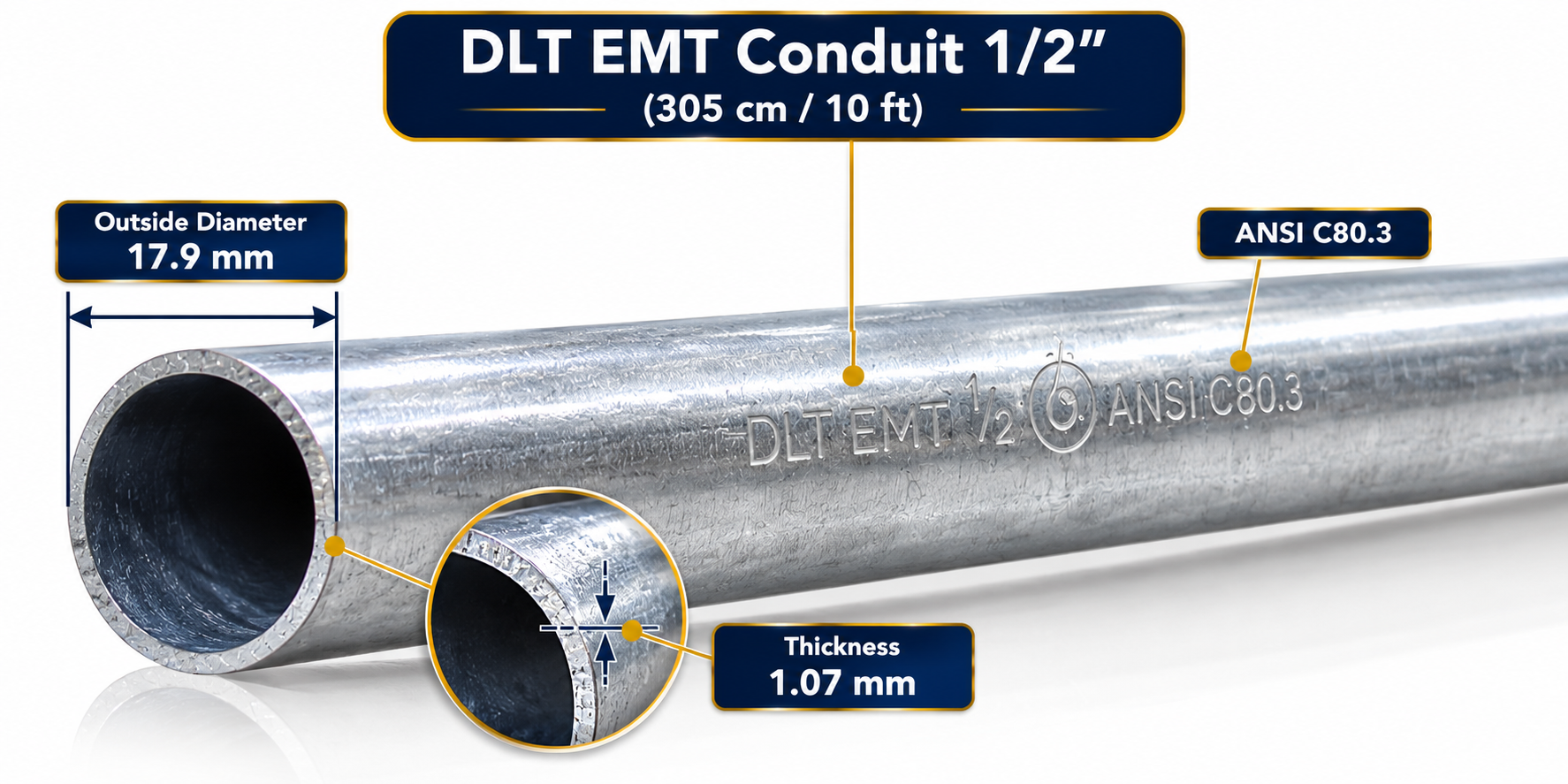

DLT-050	1/2	0.042	1.07	0.706	17.9

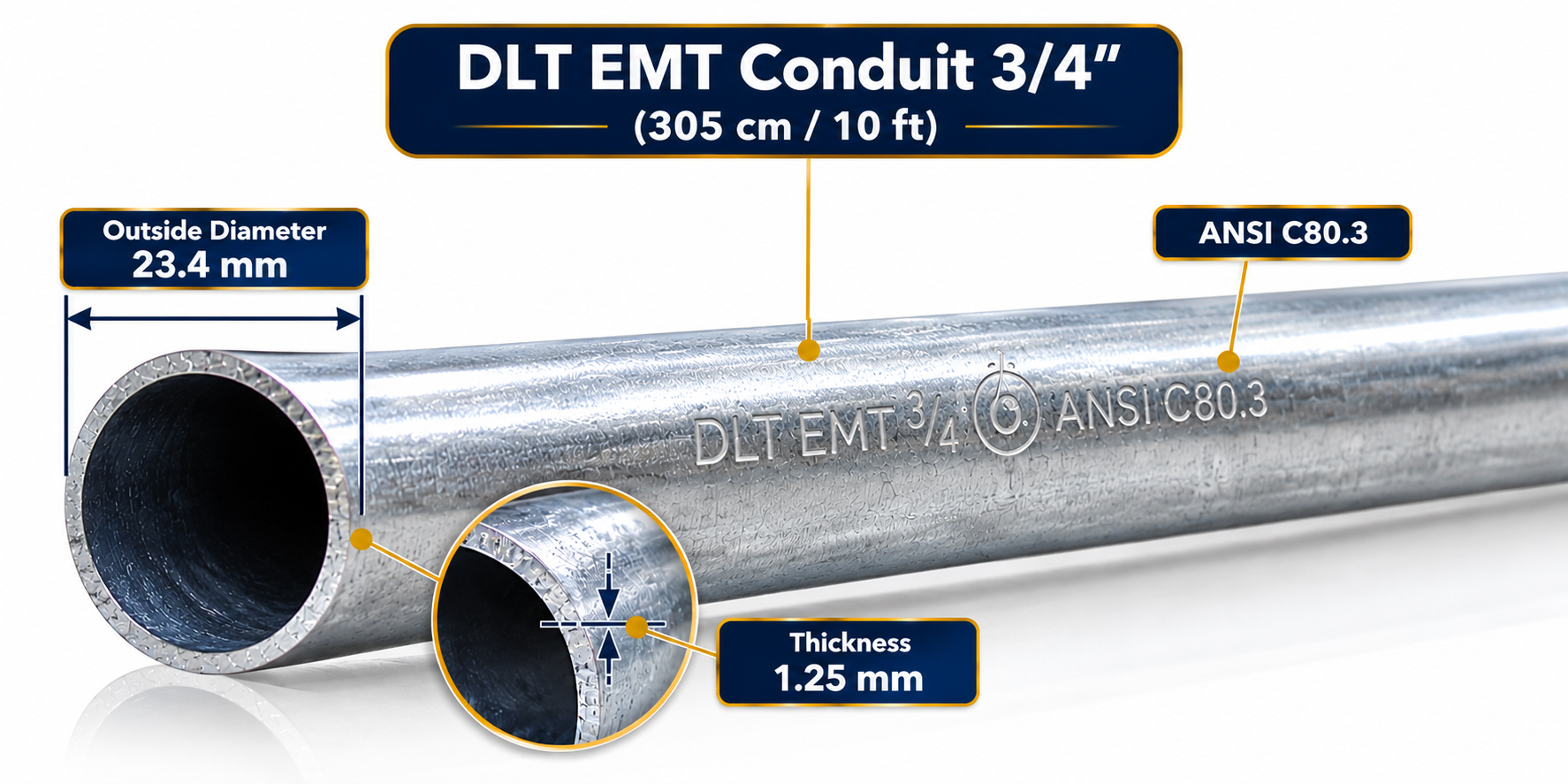

DLT-075	3/4	0.049	1.25	0.922	23.4

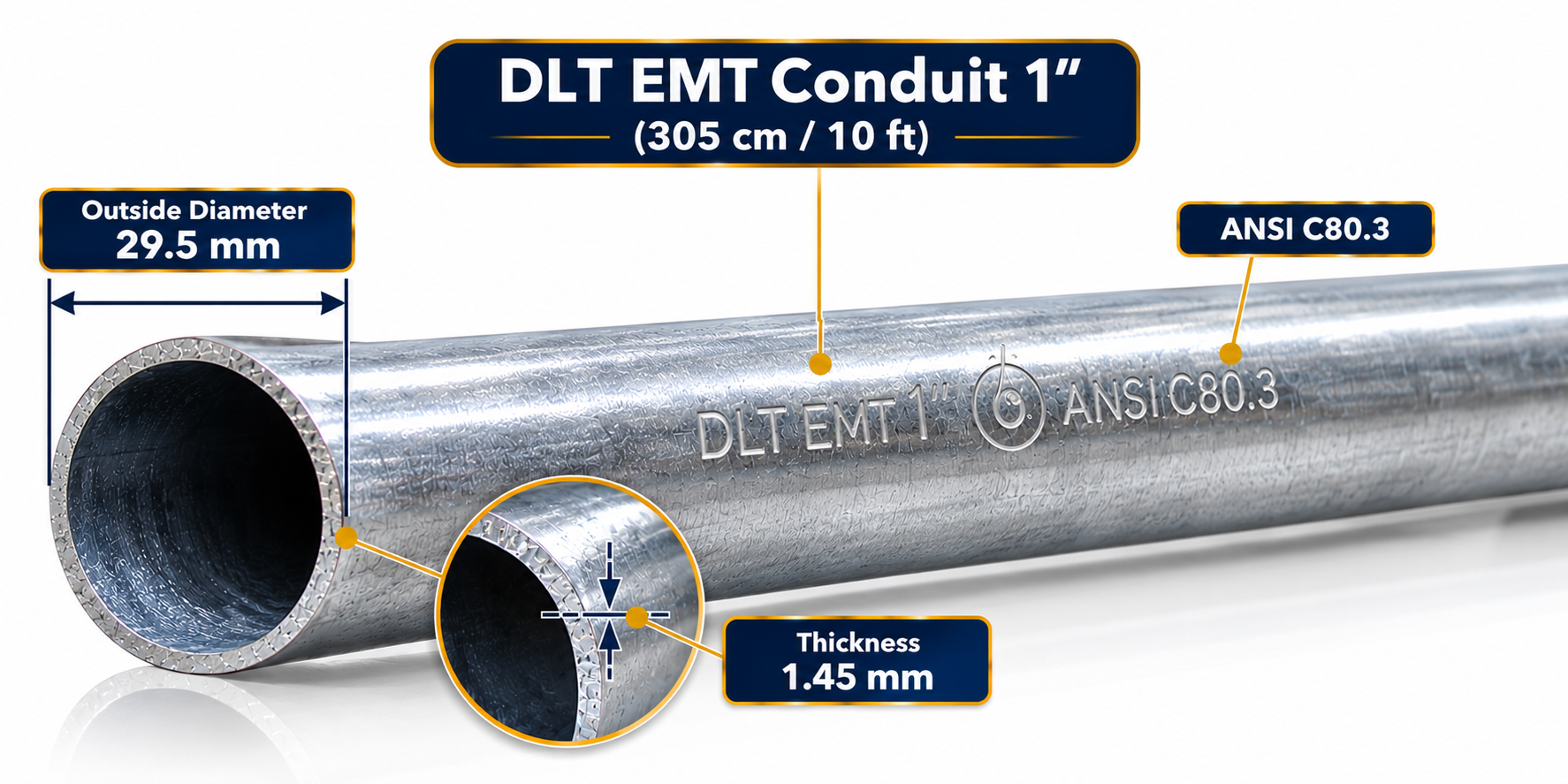

DLT-100	1	0.057	1.45	1.163	29.5

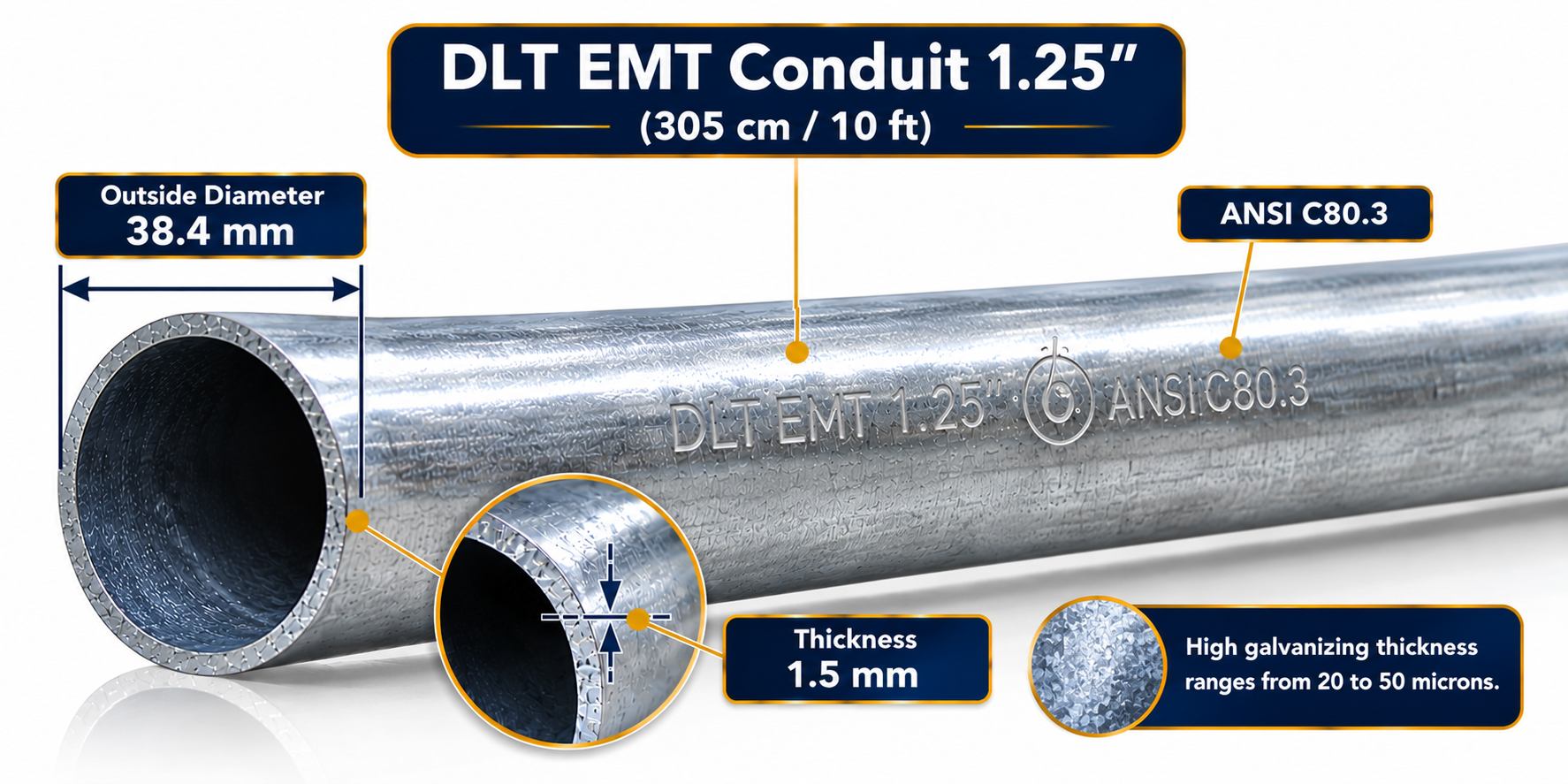

DLT-125	1-1/4	0.065	1.65	1.510	38.4

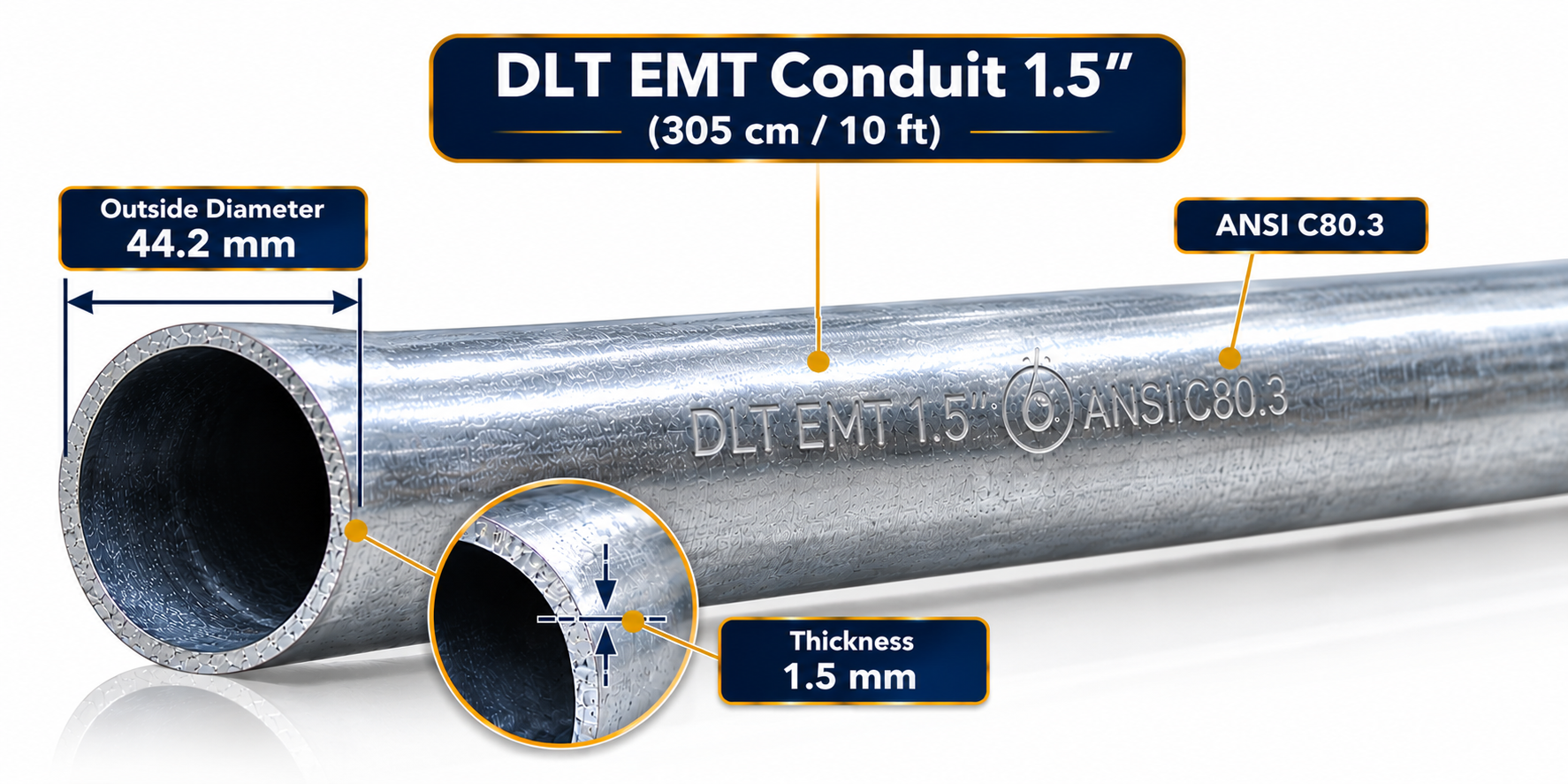

DLT-150	1-1/2	0.065	1.65	1.740	44.2
DLT-200	2	0.065	1.65	2.197	55.8
