Product Details
EMT Flexible Conduit
EMT FLEXIBLE CONDUIT
Thumb 0
Thumb 1
Thumb 2
Thumb 3

EMT FLEXIBLE CONDUIT

Description Galvanized steel flexible conduit is suitable for concealed, exposed or approved raceways. The flexible conduit is manufactured with a continuous spiral wound strip corrosion resistant, hot dipped galvanized steel.

The natural color type RWS conduit features a smooth metal interior for easy wire plugging. The flexible steel conduit is wire temperature rated, and has a superior crush proof qualities.

Its Benefits

• Smooth interior for easy wire pulling

• Able to withstand high temperatures

• Durable crush-proof construction

• Corrosion and rust resistant

• Motor Feeder, Branch, Control circuit conductors and cable

• Environmental air-handling spaces

• Concealed or exposed installations

• Elevators, hoistways, escalators

FLEXIBLE METAL CONDUIT - STEEL (WEIGHTS AND DIMENSIONS)

Specifications

SIZE ITEM# COIL PACKING (m) INSIDE DIAMETER (MM) Max. INSIDE DIAMETER (MM) Min. OUTSIDE DIAMETER (MM) Max. OUTSIDE DIAMETER (MM) Min.
3/8" DLT-4100 30, 50, 100 12.8 12.3 16.2 15.7

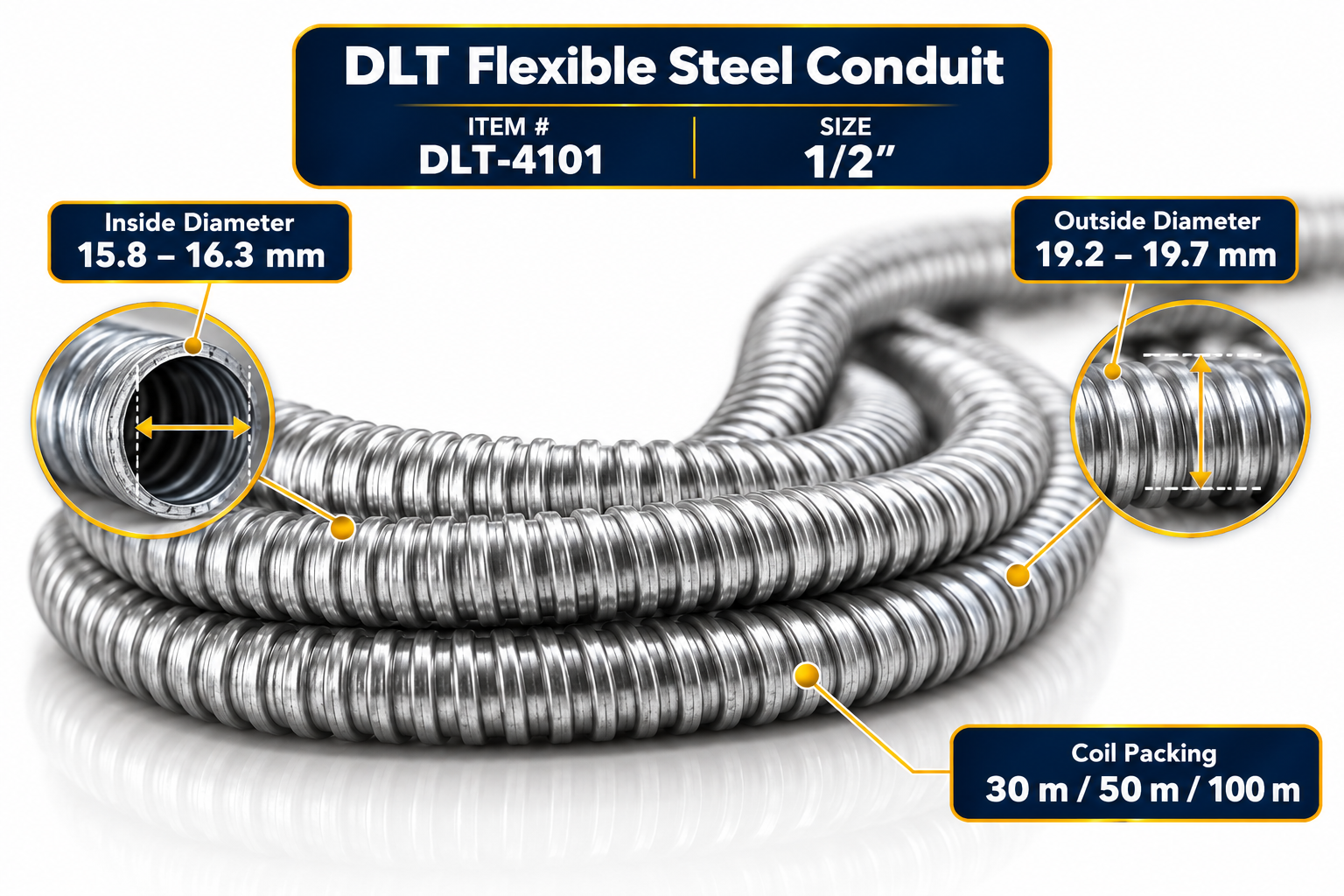

1/2" DLT-4101 30, 50, 100 16.3 15.8 19.7 19.2
3/4" DLT-4102 30, 50, 100 21.3 20.7 25.1 24.5
1" DLT-4103 30, 50 26.8 26.4 31 30.4
1-1/4" DLT-4104 15, 25 35.4 34.7 40.3 39.6
1-1/2" DLT-4105 15, 25 40.6 40 45.8 45.2
2" DLT-4106 15, 20 51.9 51.3 57.1 56.5
