EMT Flexible Conduit

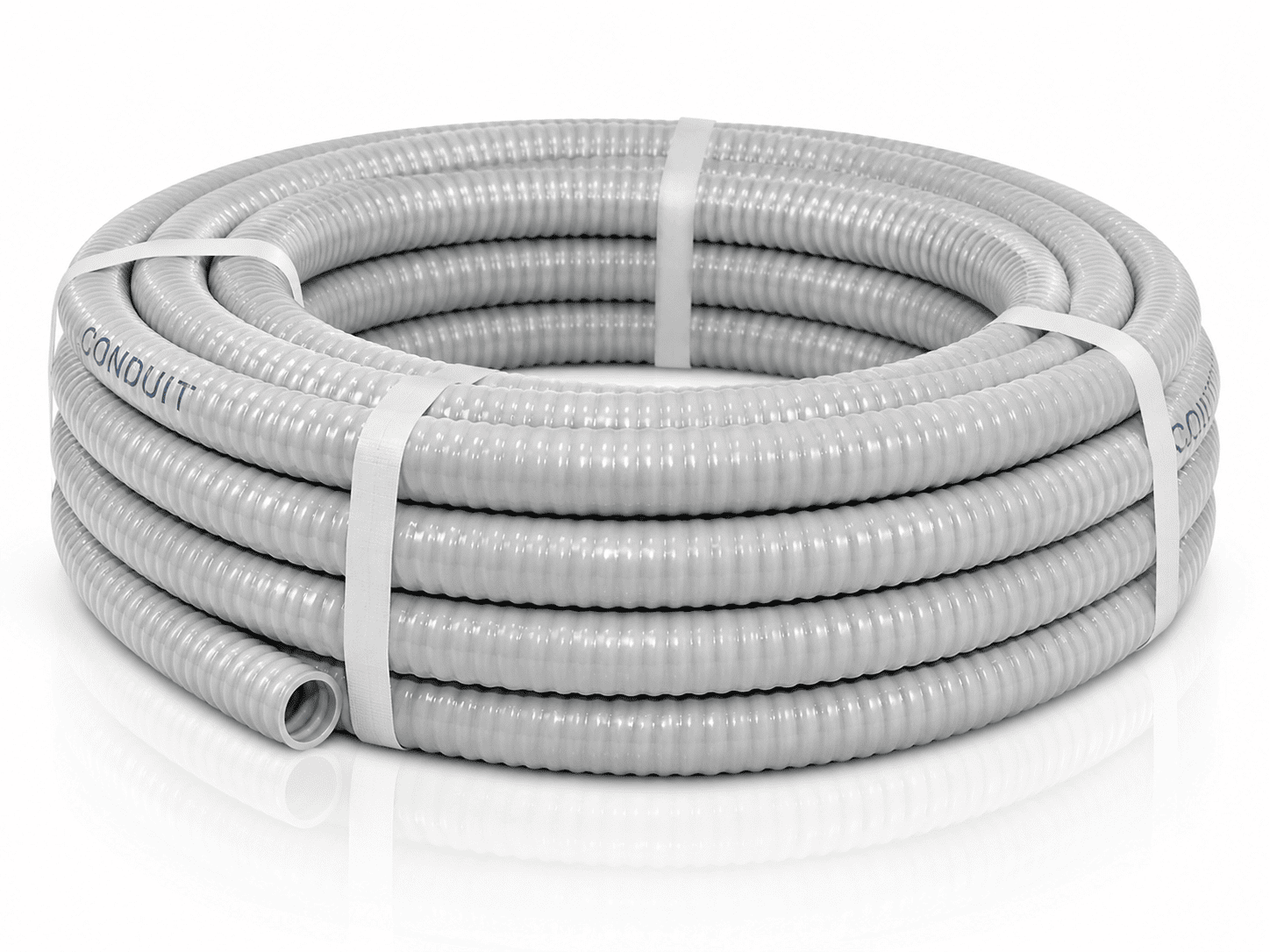

PVC COATED GALVANIZED STEEL FLEXIBLE CONDUIT

Material Galvanized steel (inside) + PVC (outside).

Features Ideal for static and dynamic applications requiring high mechanical protection and high flexibility.

SIZE	ITEM#	COIL PACKING (m)	INSIDE DIAMETER (MM) Max.	INSIDE DIAMETER (MM) Min.	OUTSIDE DIAMETER (MM) Max.	OUTSIDE DIAMETER (MM) Min.
3/8"	DLT-5200	30, 50, 100	12.8	12.3	17.2	16.7

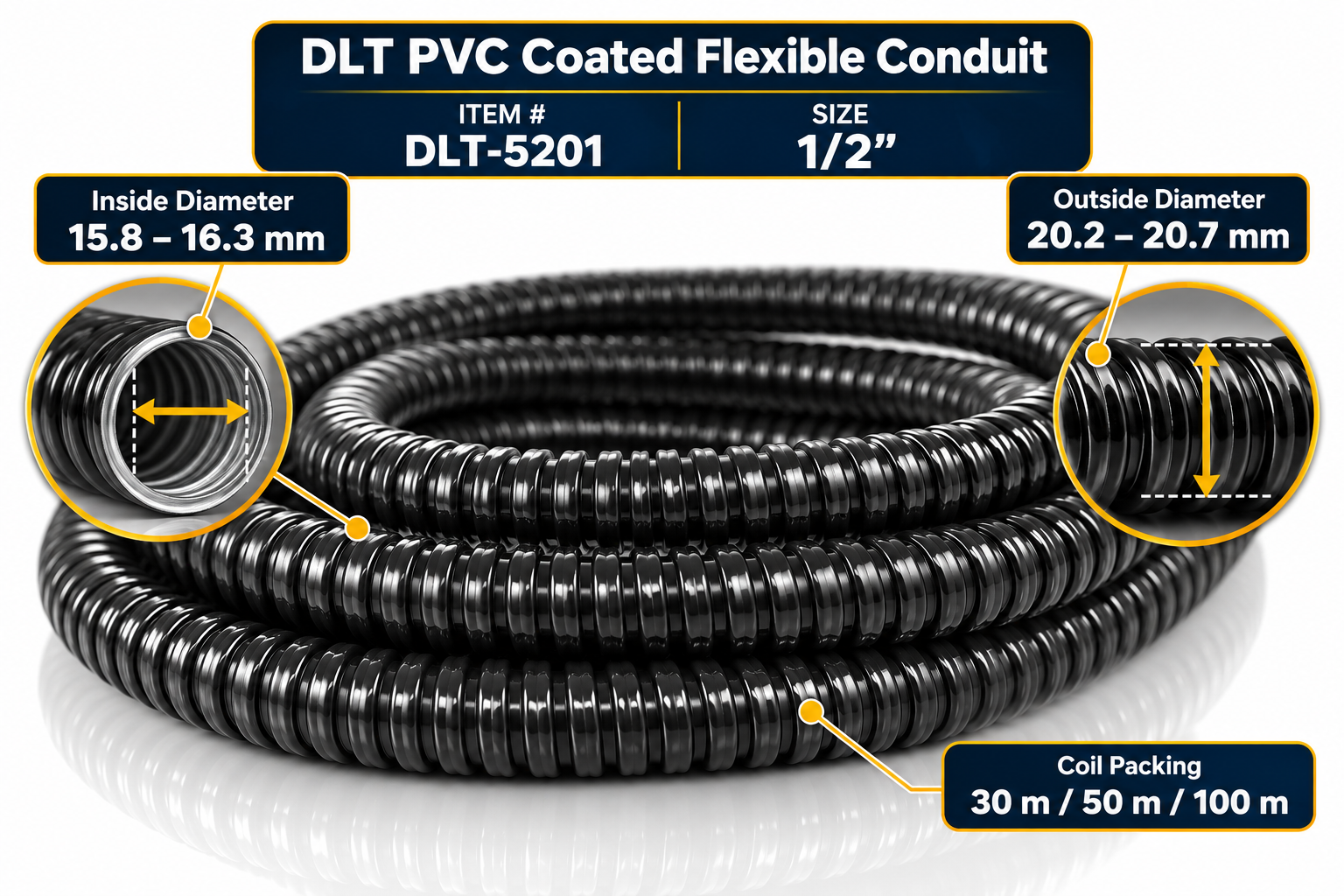

1/2"	DLT-5201	30, 50, 100	16.3	15.8	20.7	20.2
3/4"	DLT-5202	30, 50	21.2	20.7	26.1	25.5
1"	DLT-5203	30, 50	26.8	26.4	32.2	31.6

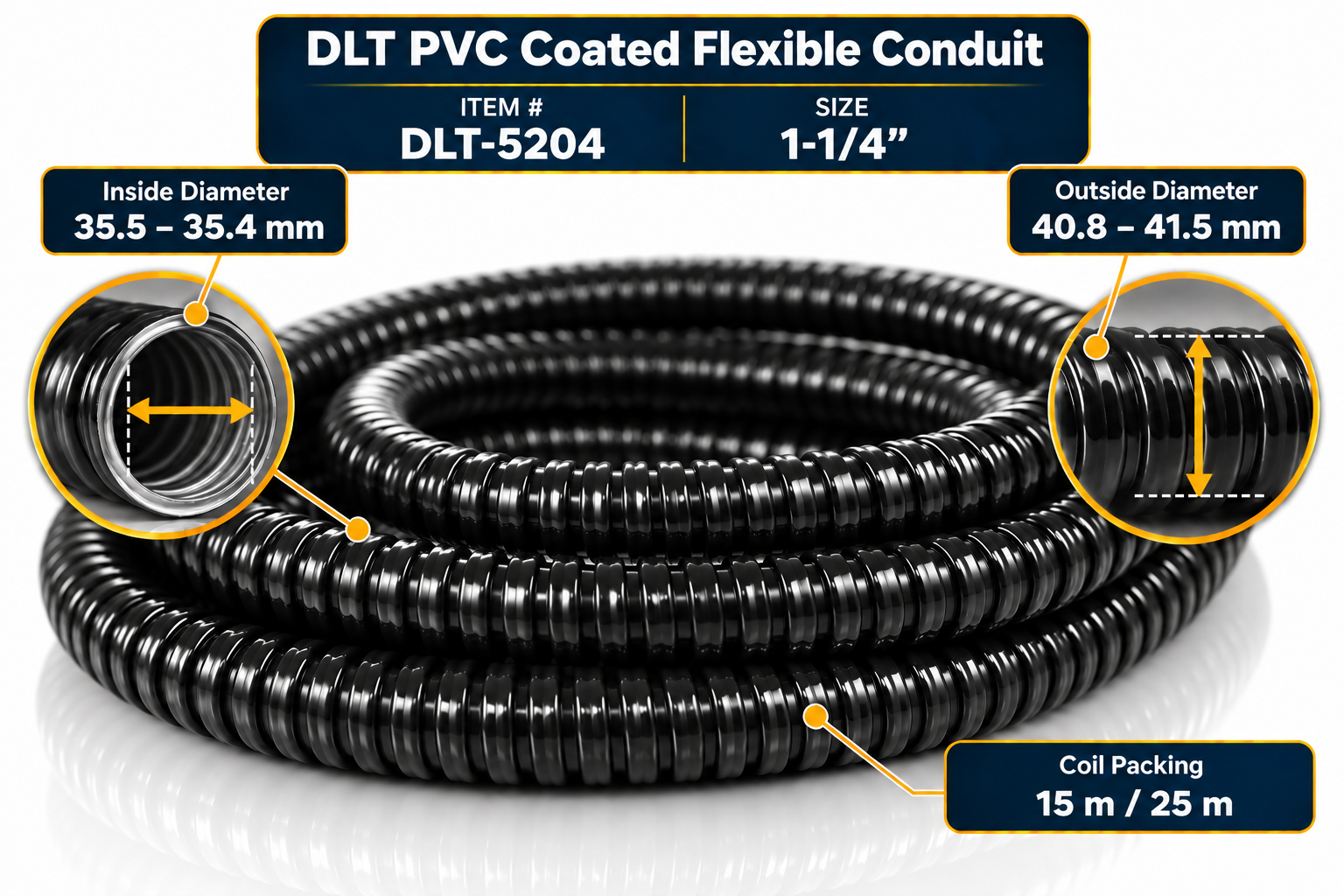

1-1/4"	DLT-5204	15, 25	35.4	35.5	41.5	40.8

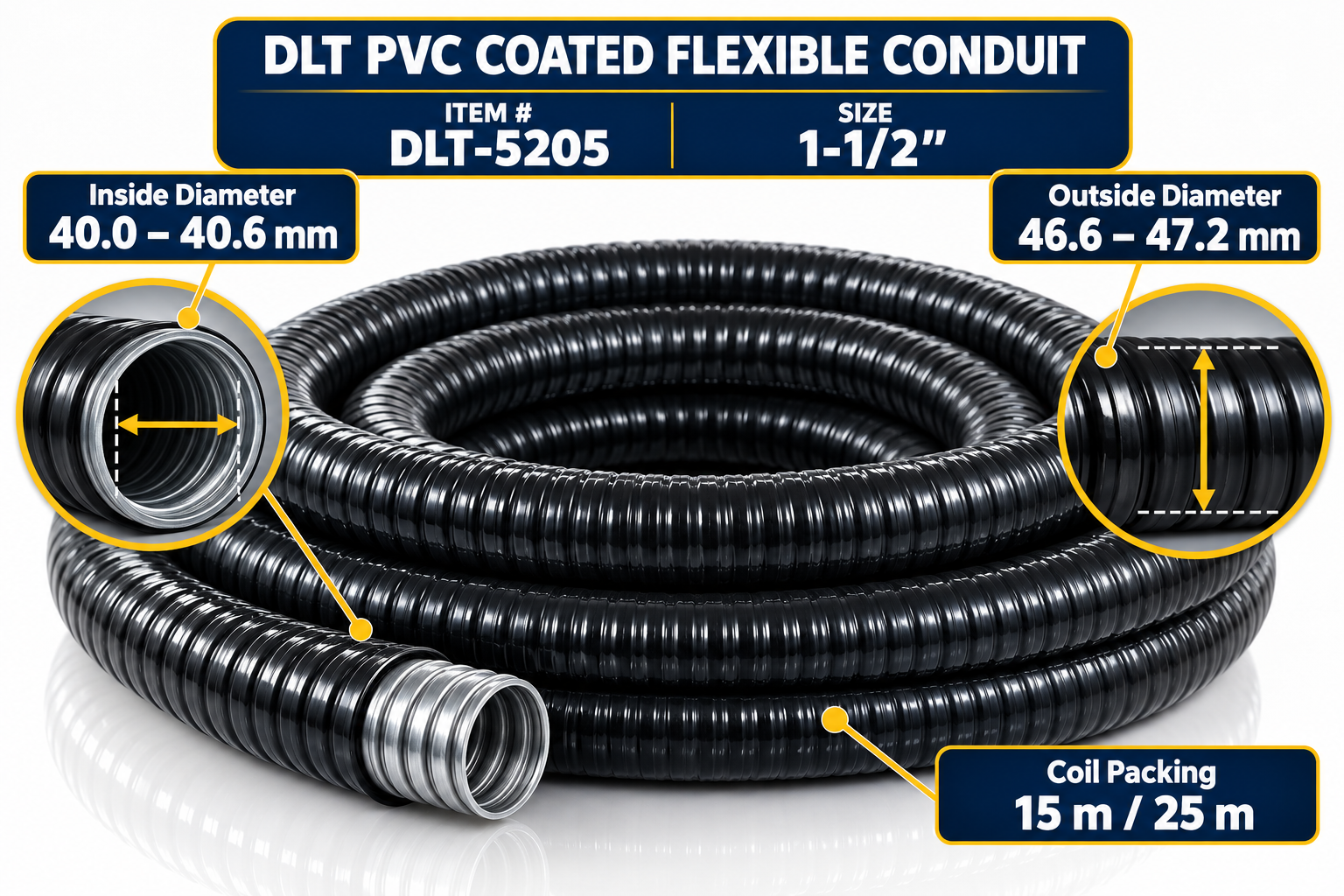

1-1/2"	DLT-5205	15, 25	40.6	40	47.2	46.6
2"	DLT-5206	15, 20	51.9	51.3	58.7	58.1
